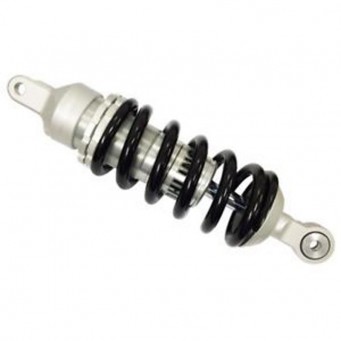

Öhlins STX 46 Blackline Shock absorber Scrambler 800 2015-2021 | Scrambler Icon 2021 | Scrambler Desert Sled 2017-2020 | Scrambl

Öhlins STX 46 Blackline Shock absorber Scrambler 800 2015-2021 | Scrambler Icon 2021 | Scrambler Desert Sled 2017-2020 | Scrambler Sixty 2 2016

Data:

Type code: S46DR1

S: monotube damper

46: Piston diameter: 46 mm

D: Gas pressure monotube damper with reservoir integrated in the housing

R1: Adjustable rebound damping on monotube damper. Adjustment wheel above the end eyelet.

Technical data:

Length: 296 mm

Stroke: 58.5 mm

Rate N/mm: 95

Position: Rear

Spring: 62091-31

Packaging unit: Single

The Öhlins STX 46 DR1 shock absorber has been developed to offer first-class suspension performance. It fits perfectly to a wide range of custom bikes and ensures high comfort and outstanding performance.

Thanks to the elegant blackline design, you don't have to choose between comfort and control. This shock combines the proven quality of Öhlins with a stylish and timeless look.

Using this shock will significantly improve your riding experience and make riding more fun.
