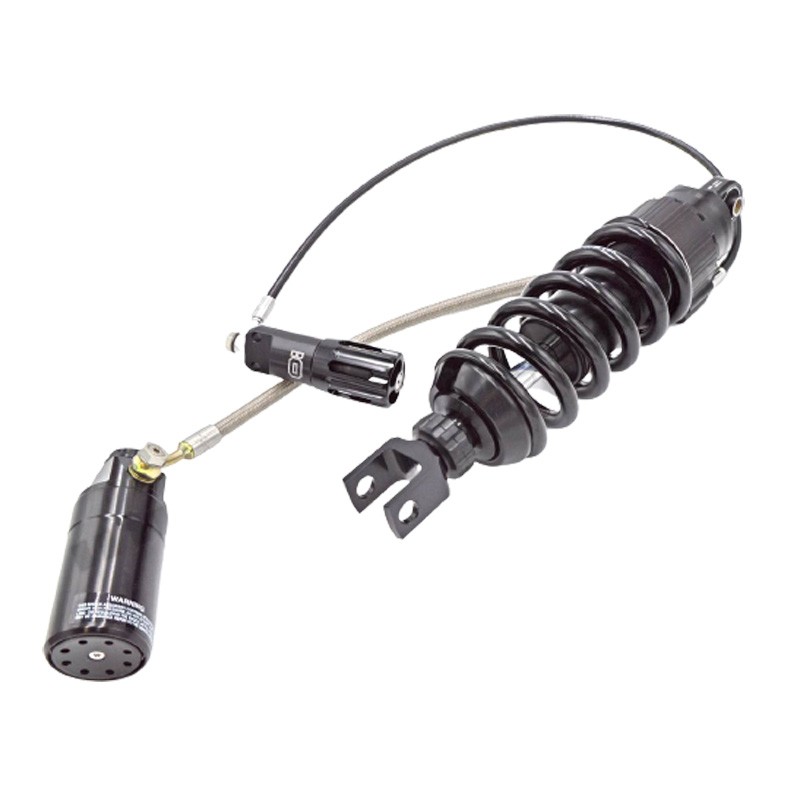

Öhlins STX 46 Blackline Shock Absorber Kawasaki ZZ-R1400 2006-2020

Öhlins STX 46 Blackline Shock Absorber Kawasaki ZZ-R1400 2006-2020

Type Code: S46HR1C1S
S: Single tube
46: Piston diameter: 46 mm
H: High pressure gas type of shock absorber with hose mounted external reservoir.
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.
S: Hose mounted hydraulic spring preload adjuster.

Technical data
Length: 326,5 mm
Stroke: 65,5 mm
Rate N/mm: 90 N/mm
Mounted spring: 21102-29
Position: rear
Packaging unit: pieces
