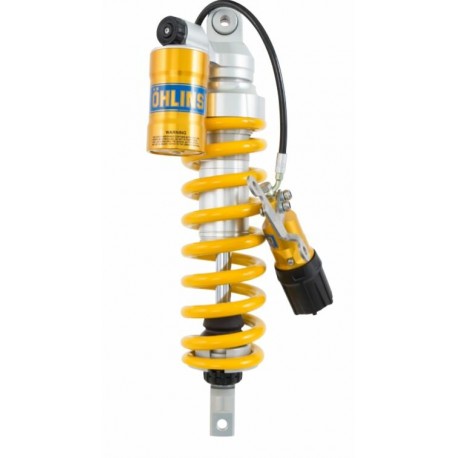

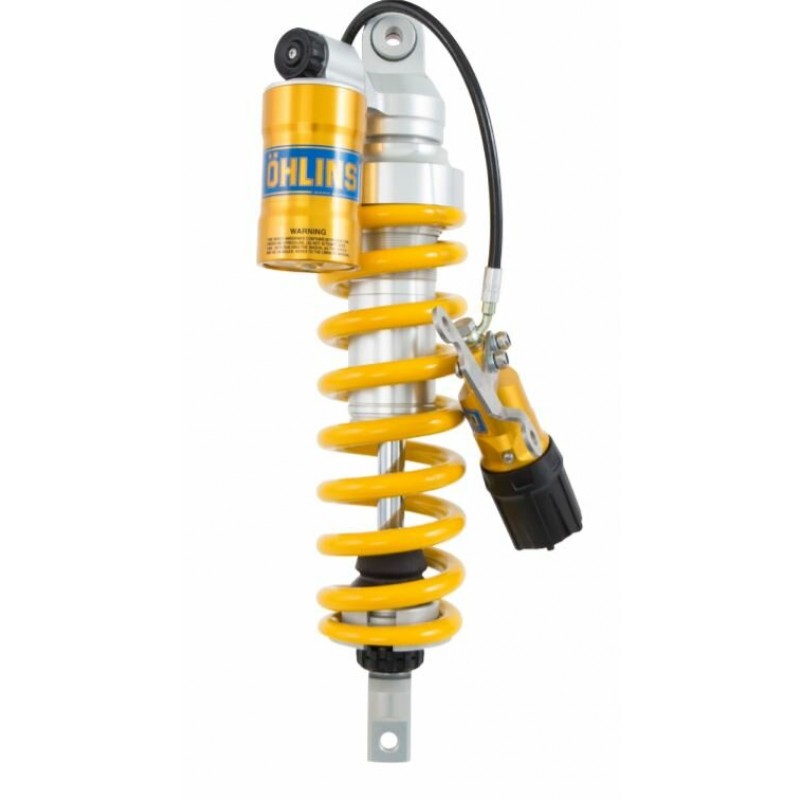

Öhlins STX 46 Adventure Shock Absorber XT700 Ténéré 2019-2024 | XT700 Ténéré Rally Edition 2019-2024

Öhlins STX 46 Adventure Shock Absorber XT700 Ténéré 2019-2024 | XT700 Ténéré Rally Edition 2019-2024

Data:

Type Code: S46PR1C1S
S: Single tube
46: Piston diameter: 46 mm
P: Monotube high pressure gas type of shock absorber with external reservoir
R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye
C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir
S: Hose mounted hydraulic spring preload adjuster.

Technical data:
Length: 371 mm
Stroke: 94 mm
Rate N/mm: 70
Mounted spring: 00698-19
Mounting position: Rear mono
Packaging unit: kit
