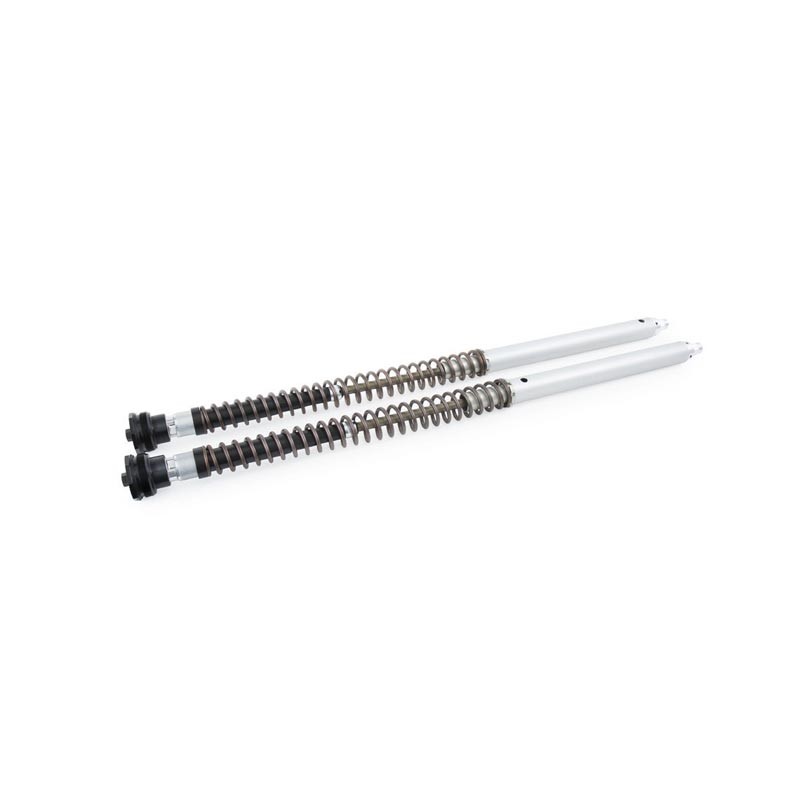

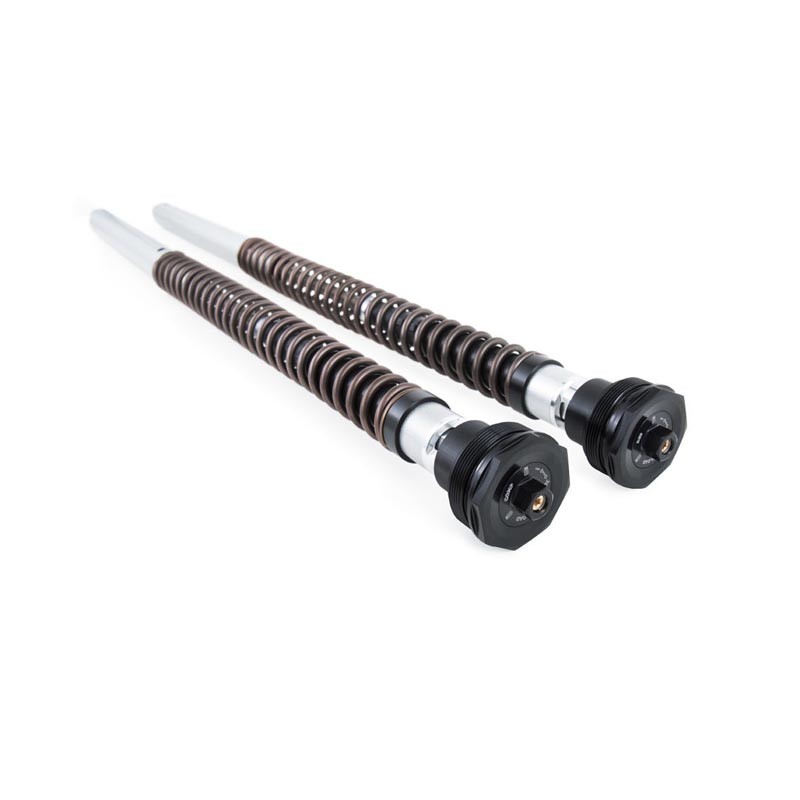

Öhlins FKA Cartridge Kit Adventure XT1200Z Super Ténéré 2010-2020

Öhlins FKA Cartridge Kit Adventure XT1200Z Super Ténéré 2010-2020

Data:
Length:    872 mm
Stroke:    190 mm
Position:    front
Spring series:    08424-serie
Recommended oil:    01309-01
Packaging unit:    pair

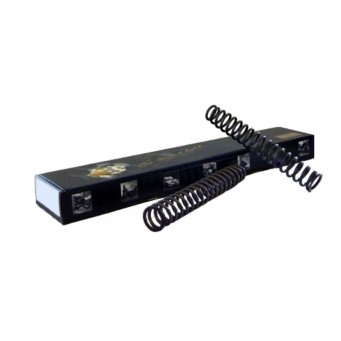

The Öhlins cartridge system fits into the original front fork, springs have to be ordered individually. Please follow our recommendations regarding spring rates and oil in relation to rider's weight and preference listed in the specific cartridge kit's mounting instruction.

Installation Tools
For a correct installation of the cartridge kit into the standard front fork the following tools are required. These tools are not included and need to be purchased in addition at the Öhlins online shop.

- Tools Sleeve pin, part no. 00797-08
- Tool, pull up top-out spring M10, part no. 01765-04
- Spanner NV19, part no. 04705-03

Note
Therefore it is strongly recommended to have the cartridge kit installed by a professional motorcycle or suspension workshop.
