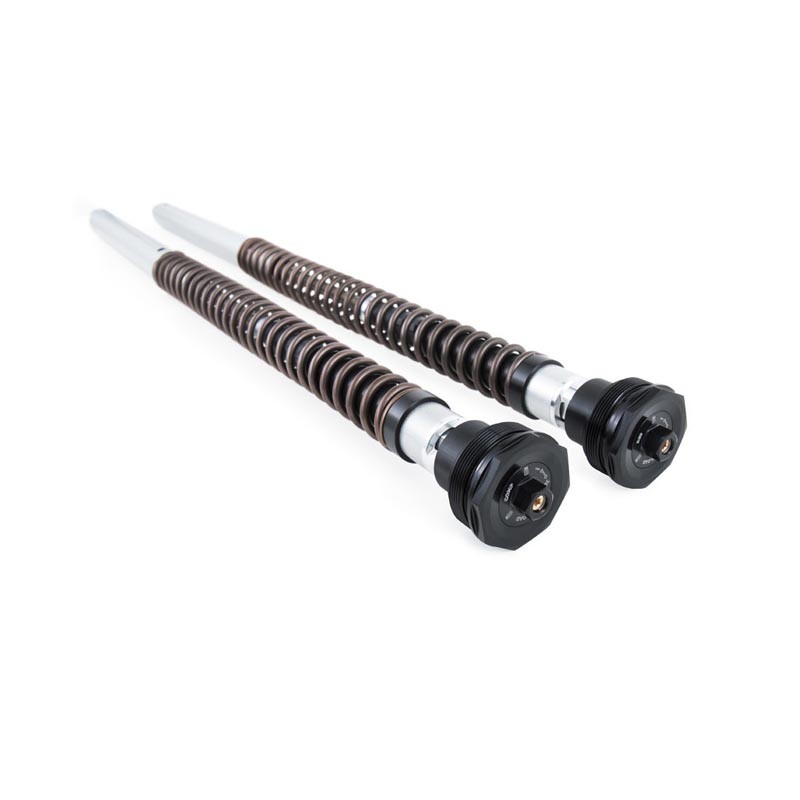

Öhlins NIX 30 Street Cartridge Kit Monster 937/Plus 2021-2023

Öhlins NIX 30 Street Cartridge Kit Monster 937/Plus 2021-2023

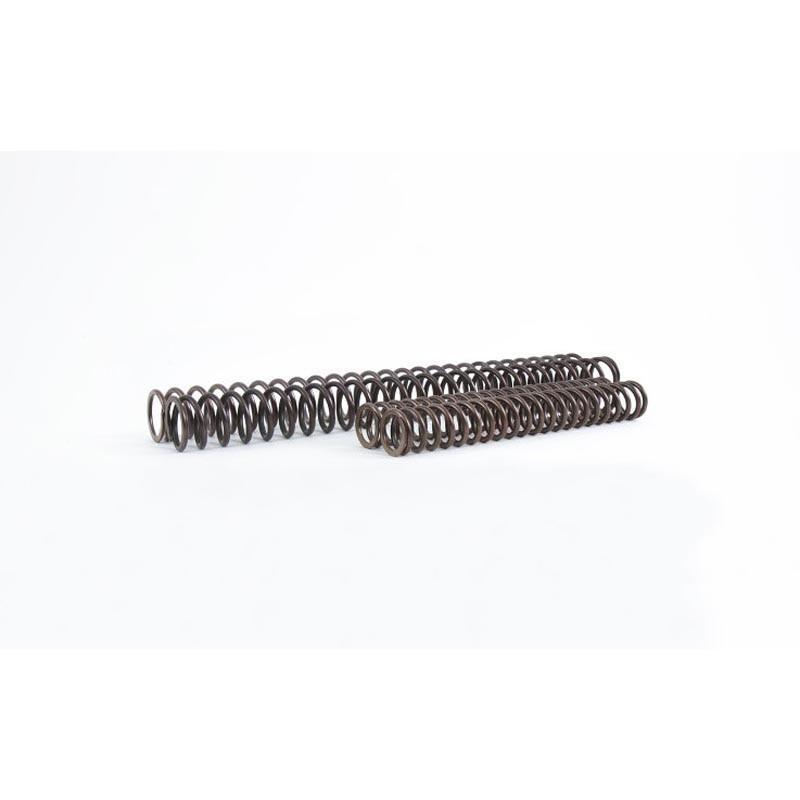

Option : none, springs 8.0 N/mm, springs 8.5 N/mm; springs 9.0 N/mm or springs 9.5 N/mm.

Data:

• Length: 768 mm
• Stroke: 130 mm
• Position: front
• Spring series: 08423-Serie
• Recommended oil: 01309
• Oil level mm: 170 mm
• Packaging unit: pair
•

Installation Tools
For a correct installation of the cartridge kit into the standard front fork the following tools are required. These tools are not included and need to be purchased in addition at the online shop.

• - Tool pull up top-out spring M12, part no. 01765-03
• - Tool cylindertube cap, part no. 01797-07
• - Clamp tool 60, part no. 24670-01
• - Sleeve 43/60/55 (for tool 24670-01), part no. 24669-02

Additional Consumables
Various operating materials may be required for the professional installation of the cartridge kit. These are not included in the scope of delivery and can also be ordered via the Öhlins online shop. Please refer to the installation instructions for the respective product.

- Red grease, 100 g, part no. 00146-01
- Grease Statoil CaH 92, 100 g, part no. 00159-02
- Loctite 2400, 50 ml, part no. 01791-25
- Loctite 2700, 50 ml, part no. 01791-27

Note
Therefore it is strongly recommended to have the cartridge kit installed by a professional motorcycle or suspension workshop
