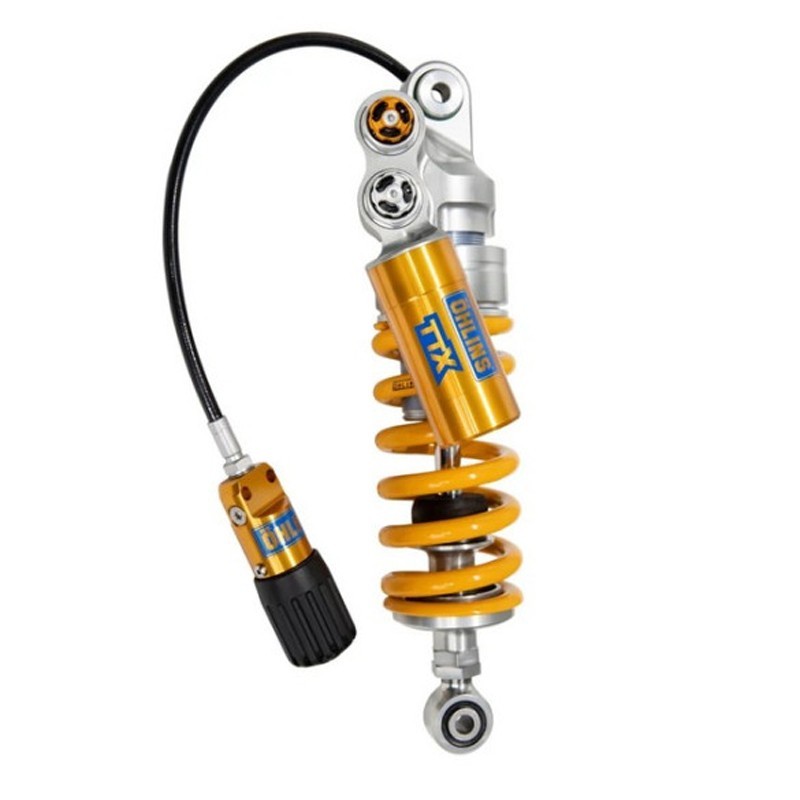

Öhlins TTX GP Shock Absorber Yamaha YZF-R9 2025-

Öhlins TTX GP Shock Absorber Yamaha YZF-R9 2025-

Data:
Type Code: T36PR1C1LS
T: Twin tube
36: Piston diameter: 36 mm
P: Monotube high pressure gas type of shock absorber with external reservoir.
R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.
C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.
L: Adjustable length.
S: Hose mounted hydraulic spring preload adjuster.

Technical data
Length: 326 +4/-2 mm
Stroke: 62 mm
Rate N/mm: 100 N/mm
Position: rear
Mounted spring: 21040-34
Spring series: 21040-xx
Mounting length min/max: 324 / 330
Mounting position: Rear mono
Packaging unit: pieces
